Flow Meter


Dispensing / Filling

Non-Contact Design
Enables Monitoring of
Countless Liquids

The clamp-on design monitors ow from outside the pipe, making it suited for verifying coating amounts for grease, glue, and other materials where adherence to monitoring equipment is a concenr. It can also verify for food, medication, and other i tems where contact with monitoring equipment is to be avoided.

Grease

Adhesive

Flux

Sealant

Anti-carbonising agent

Anti-rust agent

Resist Fluid

Primer

FIPG

Silicone

Urethane

Varnish

Plating solution

Electrolyte

Solvent

Chemicals

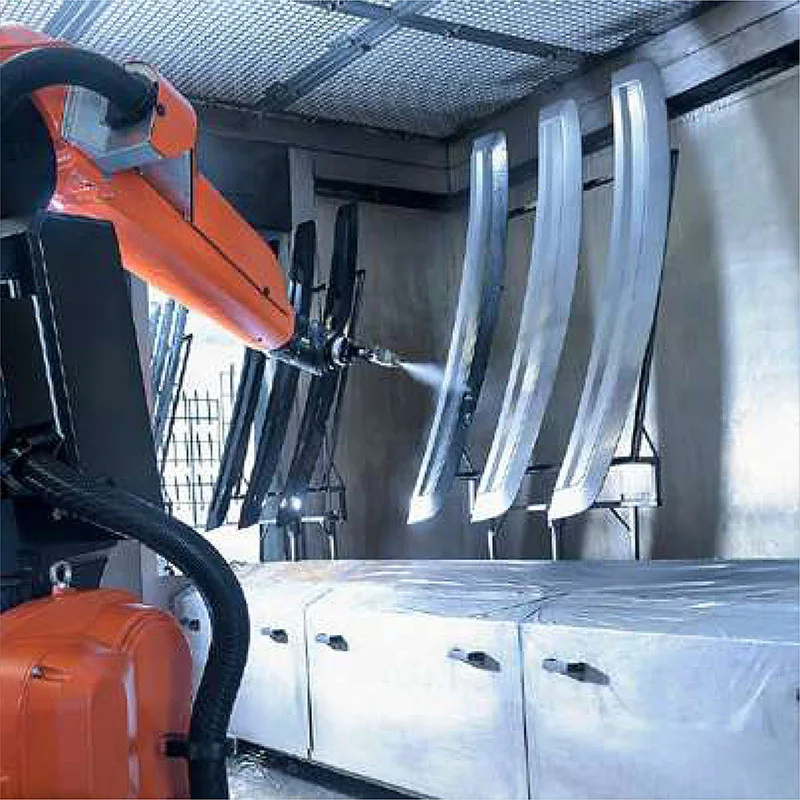

Spraying / Coating / Circulation

No Pressure Loss Ensures Proper Manufacturing Conditions
Typical ow sensors are placed within the ow channel, causing pressure losses and increasing the risk of varying manufacturing conditions.This makes it di to install conventional ow sensors on pre-existing equipment. A clamp-on ow sensor eliminates this risk and requires no maintenance.

Mould release agent

Centre through coolant

Flocculant

Paint

Slurry

Alcohol

Beverages

Cooking oil

Additives

Ink

Repeatability of ±0.1% of F.S. Without Contacting the Liquid

TransmissionTime Dierence Method (DeltaTOF)

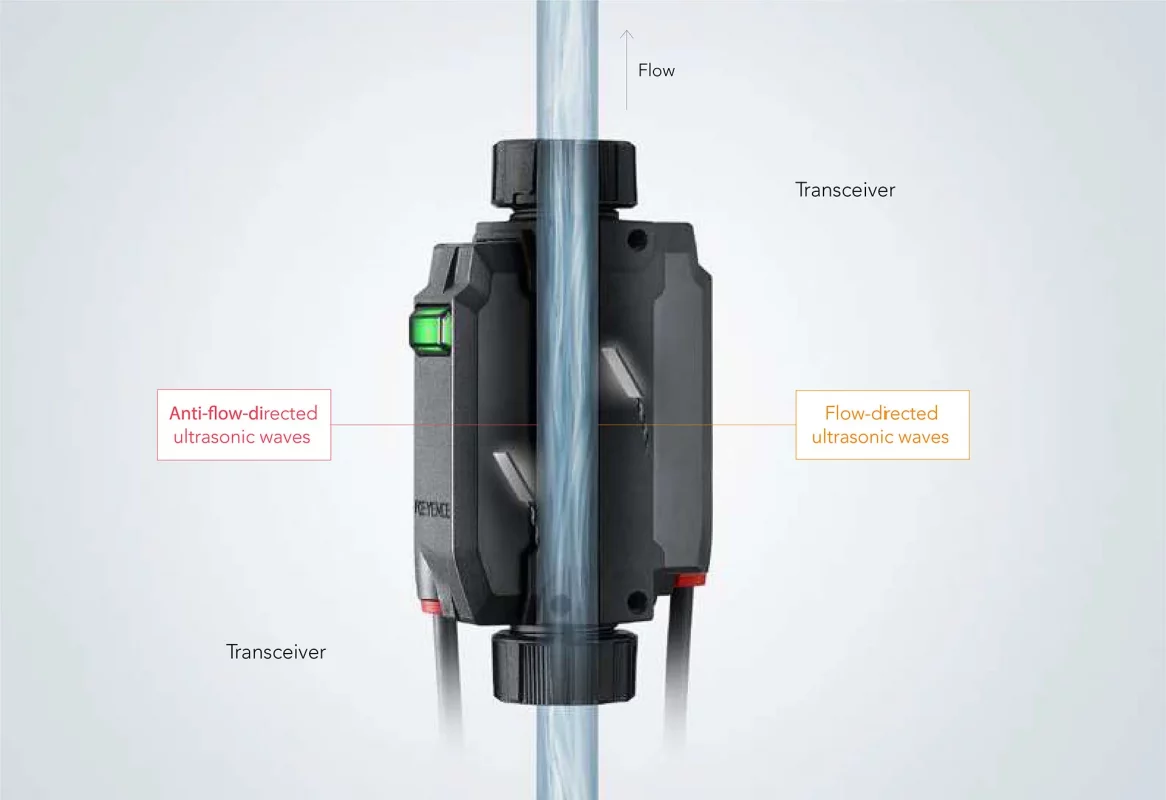

The sensor sends ultrasonic waves along, and against, the liquid ow direction.The faster the ow, the shorter the time required for the ow-directed waves to reach the other side, and the longer the time for the waves going in the opposite direction. Measuring this time dierence ensures stable detection of ow, while eliminating the impact of environmental changes.

Superior Repeatability Instantaneous ow: ±0.1% of F.S. Ejection amount: ±0.003 mL

Despite the external clamp-on design, the FD-X Series provides highly repeatable readings. It can be used to reliably monitor instantaneous ow, as well as uid ejection rates.
