Circulation Rack

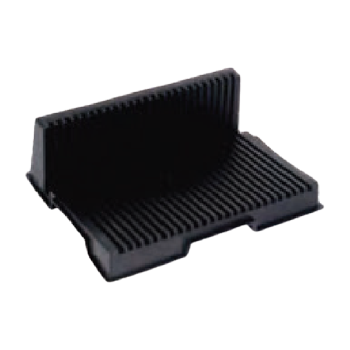

LN - 1530D01

Anti-static Circulation Rack

  • Surface Resistance: 104-109Ω
  • Contour Size: 410x280x165mm
  • Use Slot Size: (LxH) 225x140mm
  • 38pcs PCB can be stored
  • Slot width: 2.8mm, depth:5mm Pitch: 10mm

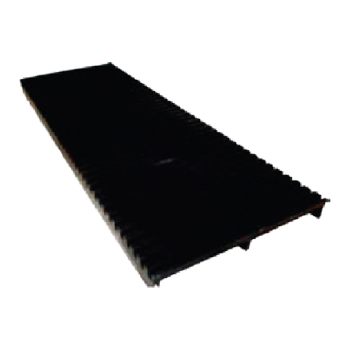

LN - 1530D02

Anti-static Circulation Rack

  • Surface Resistance: 104-109Ω
  • Contour Size: 480x140x35mm
  • Slot one: 2.2x4mm
    Slot two: 3x7mm
    Slot three: 3x7mm
    Pitch: 15mm
  • Two side can be used, each kind of slot can put 25 pcs PCB

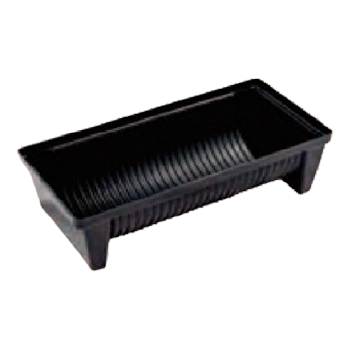

LN - 1530D03

Anti-static Circulation Rack

  • Surface Resistance: 104-109Ω
  • Contour Size: 265x205x95mm
  • Use Slot Size: (LxH) 155x75mm
  • Width 3.2mm, Depth 5mm, Pitch 9mm
  • 25pcs PCB can be stored

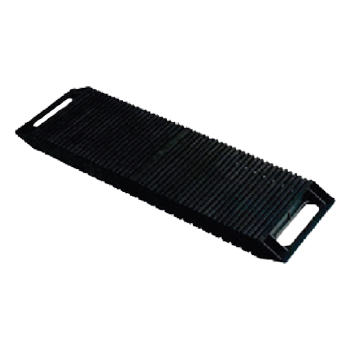

LN - 1530D04

Anti-static Circulation Rack

  • Surface Resistance: 104-1010Ω
  • Contour Size: 410x140x22mm
  • Slot Size: 2.8*5mm, pitch 10mm
  • 42pcs PCB can be stored

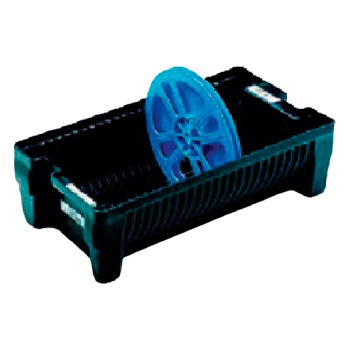

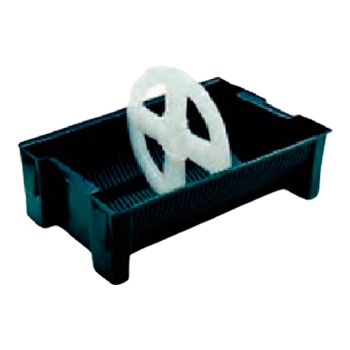

SMT Reel Box Tray

LN - 1530D10

LN - 1530D11

LN - 1530D12

LN - 1530603A

LN - 1530603C

LN - 1530604

LN - 1530605
