Discover
Hanwha
After developing the first Chip mounter in 1989, Hanwha
Precision Machinery has become a leading worldwide
Smart Factory solutions provider, offering Surface Mount
Technology (SMT) mounters, semiconductor equipment,
insertion and assembly automation equipment, Machine
Tool, industrial automation equipment, and integrated
software solutions.
Chip Mounter
HM520 HS
Cutting-edga Modular Mounter
Features
- Fix Camera
- 20 spindles x 2 Gantry (Rotary Type)
- 80,000 CPH
HM520 MF
Cutting-edga Modular Mounter
Features
- Fix Camera
- 6 spindles x 2 Gantry (Piano Type)
- 60,000 CPH
XM510
Odd-Shape Modular Mounter
Features
- Fix Camera
- 3 Spindles x 1 Gantry
- 11,000 CPH

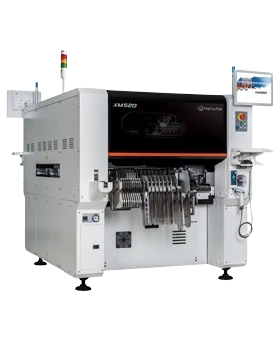

XM520
The Standard Of Flexibility
Features
- 10 Spindle* 2 Gantry
- 100,000 CPH (Optimum)
- 0201 ~ 22mm(Fly)/ ~ L150 X 55mm
DECAN F2
Advanced Flexible Placer
Features
- Secures the applicability to components and conveyor flexibility.
- Reduces production time by optimizing the motion sequence.
- Reinforces odd-shape component
recognition by applying 3D lighting
system.
DECAN L2
Advanced Multi-Functional Placer
Features
- Secures the applicability to components and conveyor flexibility.
- Reduces production time by optimizing the motion sequence.
- Reinforces odd-shape component
recognition by applying 3D lighting
system.
DECAN S2
Advanced Chip Shooter
Features
- Secures the applicability to components and conveyor flexibility.
- Reduces production time by optimizing the motion sequence.
- Reinforces odd-shape component
recognition by applying 3D lighting
system.
DECAN S1
Fast & Flexible Mounter
Features
- Improving actual productivity
- Improves placement quality
- Reduces loss rate
SM485
Wide Ranged Component Placer
Features
High-Speed Universal Machine + Applicability to Odd-shape Component Placer
- Provides an optimum solution for the placement of insert components
- Applicable to various component supply devices
SM471 PLUS
Fast Chip Shooter
Features
- High-performance chip shooter with a new fly camera
- World’s highest speed of
78,000CPH among chip shooters of the same class With two gantry dual-lane construction, supports various production modes
SM481 PLUS
Fast & Flexible Mounter
Features
Production speed and component coverage suitable for general-purpose high-speed placement
- Improves placement quality
- Adopts high speed piano head with one gantry and ten nozzles
SM482 PLUS
Multi-Functional Placer
Features
- ·Adopts high-pixel vision system allowing accurate placement of IC components
·Easily registers complex shapes of components with the Polygon function
Screen Printer
SP3-C
Screen printing the future
Features
- ±8um @ 6σ
- 5sec (Excl. Printing)
- Max. L350 x W250 (Single Lane)
SP1-C
Compact High Performance
Features
- ±12.5um @ 6σ
- 5sec (Excl. Printing Time)
- Max. L330 X W250 (Single Lane)
SP1-W
Compact High Performance
Features
- ±12.5um 6σ
- 7sec (Excl. Printing Time)
- Max. L510 X W460 (Single Lane)
Dispensor
Inserting Solution
SCM1-DP
Odd-Shaped Component Placer For Bond Dispensing
Features
- 2,400 CPH (Optimum)
- 0201 ~ 6mm/ ~ 55mm (H15mm)
- L240 X W250 (Standard)
SM485
Wide Ranged Component Placer
Features
- Fly Camera + Fix Camera
- 4+1 Spindes x 1 Gantry
- 22,000 CPH (Optimum)
SM485P
Smart Hybrid Mounter
Features
- 4 Small Fix Camera + 1 Wide Fix Camera
- 4 Spindles x 1 Gantry
- 12,000 CPH (Optimum)
