Selective Solder
CT-3000
Specification:
- Industrial computer control (Windows OS) + PLC
- 20-1800 mm/min
- 50-350mm
- 1800mm 3 sections PID control Room temperature – 250°C 17,8KW 200KG
- 12KW (Cast-iron heating plate) Room temperature – 300°C
- 450kg
- 0-12mm
- 3P AC220V 0,12KW* 2 pieces
- 1P AC220V 10W
- Forced – air cooling
- L->R (R->L)
- Step motor
- 25 Lt
- 3-5 BAR
- 4°-6°
- 3P AC380V 50HZ
- 9KW/31KW
- 4500 (L) x 1400 (W) 1700mm (H)
- 1920kg
- Forced-air cooling
CT-3000 N
Specification:
- Industrial computer control (Windows OS) + PLC
- 20-1800 mm/min
- 50-350mm
- 1800mm 3 sections PID control Room temperature – 250°C 17,8KW 200KG
- 12KW (Cast-iron heating plate) Room temperature – 300°C
- 450kg
- 0-12mm
- 3P AC220V 0,12KW* 2 pieces
- 1P AC220V 10W
- Forced – air cooling
- L->R (R->L)
- Step motor
- 25 Lt
- 3-5 BAR
- 4°-6°
- 3P AC380V 50HZ
- 9KW/31KW
- 4500 (L) x 1400 (W) 1700mm (H)
- 1920kg
- Water cooling
- Standard
- 500-1000 ppm
- 253/h

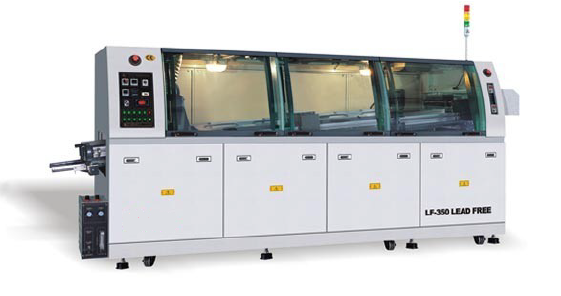

LF- 350B
Specification:
- Industrial computer control (Windows OS) + PLC
- 20-1800 mm/min
- 50-350mm
- 1800mm 3 sections PID control Room temperature – 250°C 17,8KW 200KG
- 12KW (Cast-iron heating plate) Room temperature – 300°C
- 380 kg, dipende dal peso della lega LF o PB
- 0-12mm
- 3P AC220V 0,12KW* 2 pieces
- 1P AC220V 10W
- Forced – air cooling
- L->R (R->L)
- 25 Lt
- 3-5 BAR
- 4°-6°
- 3P AC380V 50HZ
- 8KW/30KW
- (L) 4100 x (W)1400 x (H)1700 mm
- 1530 kg
LF- 350A
Specification:
- PLC control and panel operation
- 20-1800 mm/min
- 50-350mm
- 1800mm 3 sections PID control Room temperature – 250°C 17,8KW200KG
- 12KW (Cast-iron heating plate) Room temperature – 300°C
- 450kg
- 0-12mm
- 3P AC220V 10W
- 1P AC220V 10W
- Forced – air cooling
- L->R (R->L)
- 25 Lt
- Rod-less cylinder
- 4°-6°
- 3P AC380V 50HZ
- 8KW/30KW
- (L) 4100 x (W)1400 x (H)1700 mm
- 1530 kg
