SUMMIT 1800i – Semi-Automated
Specifications: Maximum Board Size: 530 x 762 mm Maximum Field of View: 80 mm Component Range: 01005 – Large Connectors
SMT Line Solutions
A short category description
Mostrando 21 de 21 productos
Summit 750i – SEMI-AUTOMATED
Specifications: Maximum Board Size: 455 x 610 mm Maximum Field of View: 50 mm Component Range: 0201 – Large Connectors
APOGEE 90 – Microfocus X-ray Inspection
Key Features: 90kV Sealed X-ray Tube, 4µm Focal Spot Oblique Angle Inspection up to 45° 5” HD Digital Flat Panel…
Promation
FLAT BELT CONVEYOR SOLUTIONS
SIGNATURE Features: Motor Controller Left to Right Process Flow, Front Fixed Rail Variable belt speed( 50 ~ 200mm/sec) Outside 500mm…
Promation

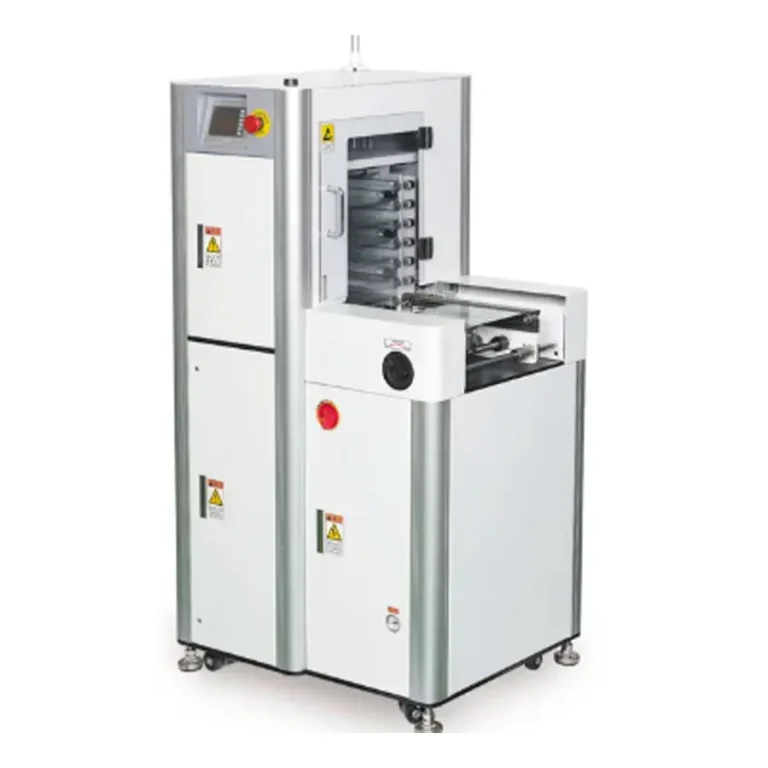

POST AOI SORTING – MULTI-FUNCTIONAL BUFFER SYSTEM
SIGNATURE Features: PLC Controller (Panasonic) Left to Right Process Flow, Front Fixed Rail All belt type buffering solution – Magnetic…
Promation
POST AOI SORTING SOLUTIONS – REMOVABLE MAGAZINE SORTING SYSTEM
SIGNATURE Features: PLC controlled Touch Panel User Interface Select No of PCBs and Pitch SMEMA 10 ~ 50mm pitch selection…
Promation

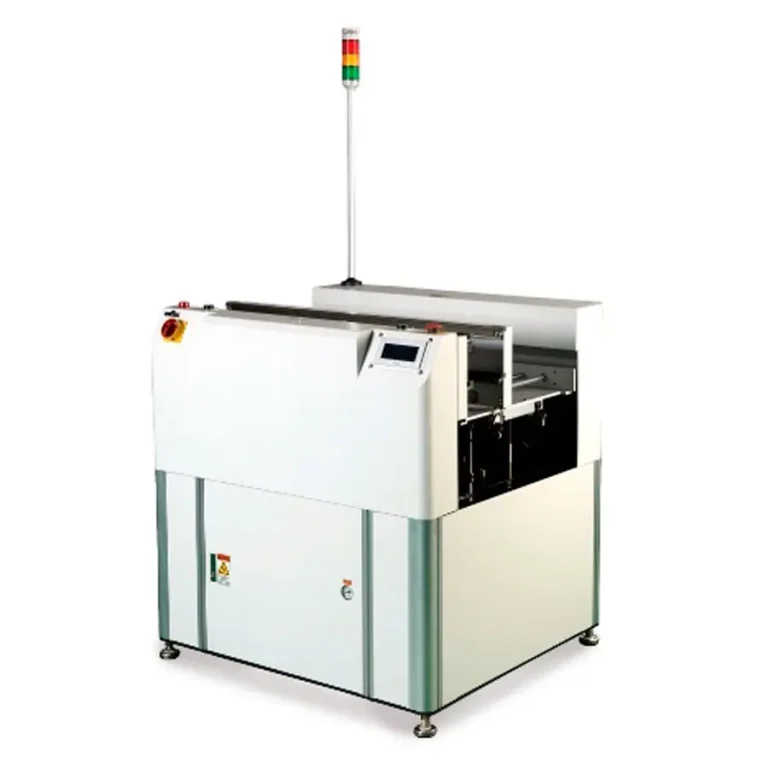

POST SPI SORTING SOLUTIONS
SIGNATURE FEATURES: PLC Controlled Touch Panel User Interface Automatic Width Adjustment Sorting SMEMA Safety Curtain Sort and Pass mode selection
Promation

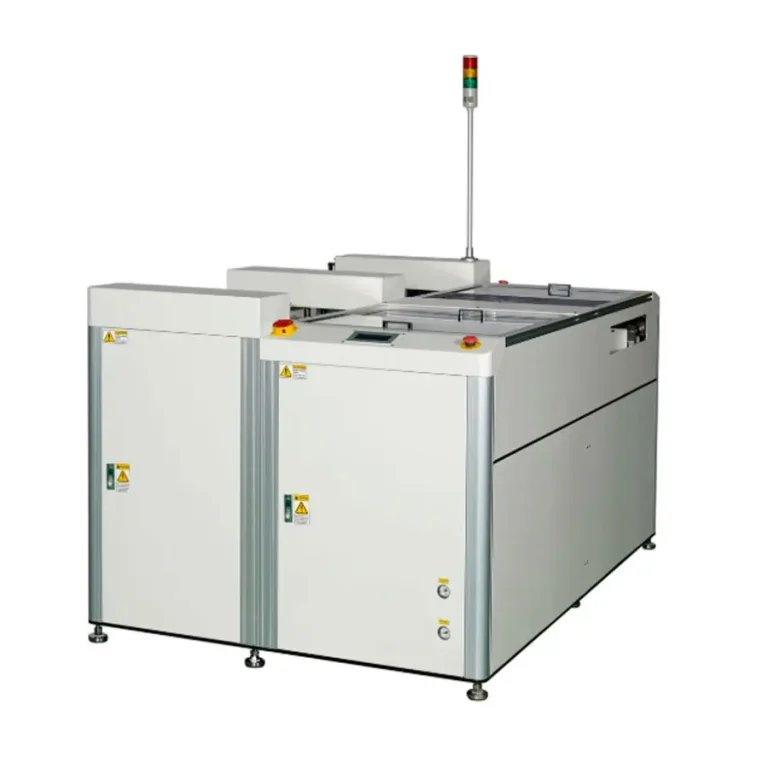

DUAL LANE CONVEYORS
SIGNATURE FEATURES: Programmable Logic Controller. LCD touch panel interface(optional). Single drive and multi-belt drive configurations available. Fixed belt speed (180mm/sec)…
Promation

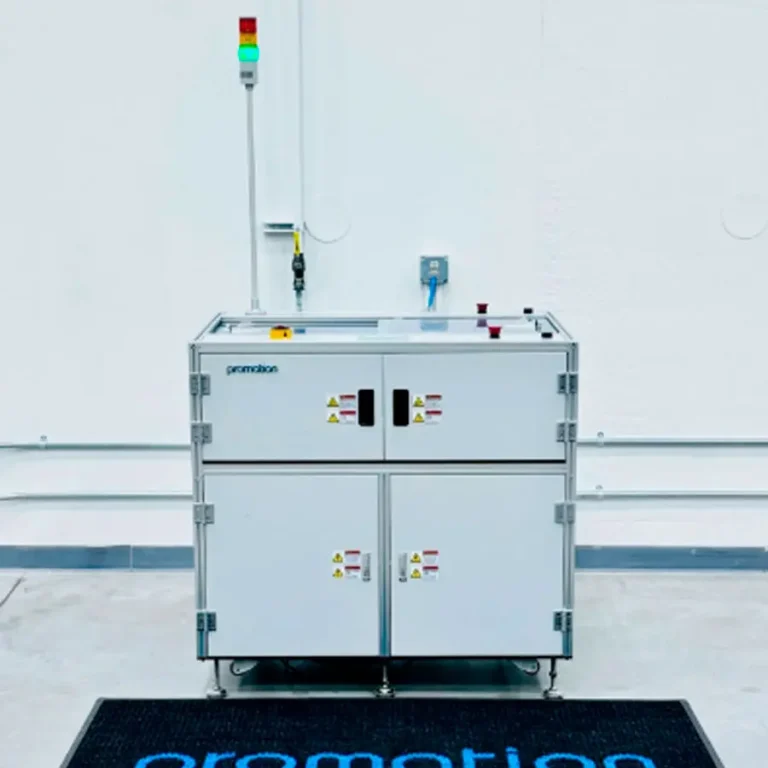

SHUTTLE GATE PASSAGEWAY CONVEYOR STATION
SIGNATURE FEATURES: Programmable Logic Controller. Servo drive for programmable extension distance, extension speed and retraction speed. (800 mm or 900 mm…
Promation

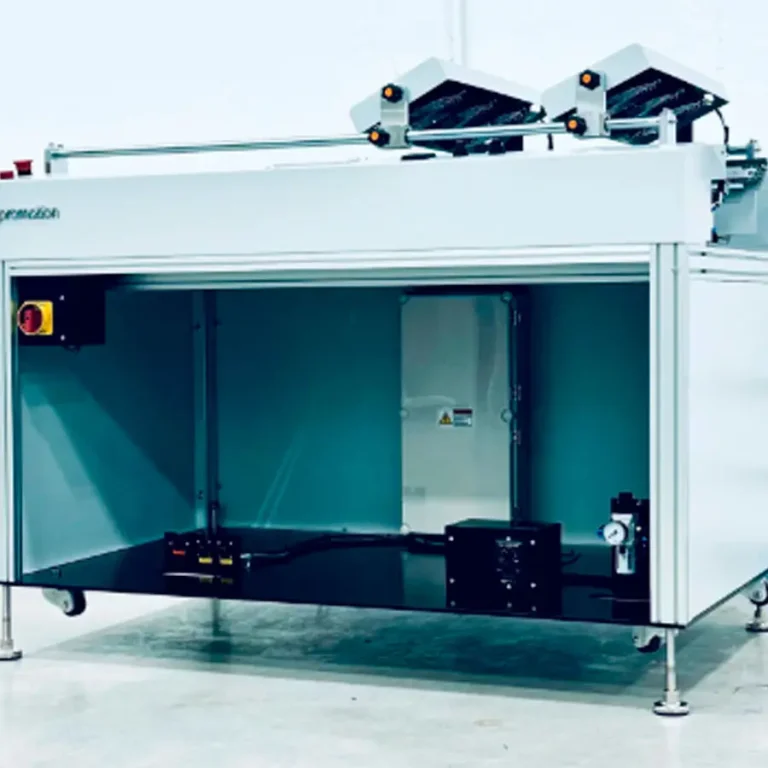

ACCUMULATION STATIONS
SIGNATURE FEATURES: ESD grounding receptacle (Optional)and audible alarm. Roller wheels allowing for easy movement. Powder coated vanity panels, "PROMATION White"…
Promation

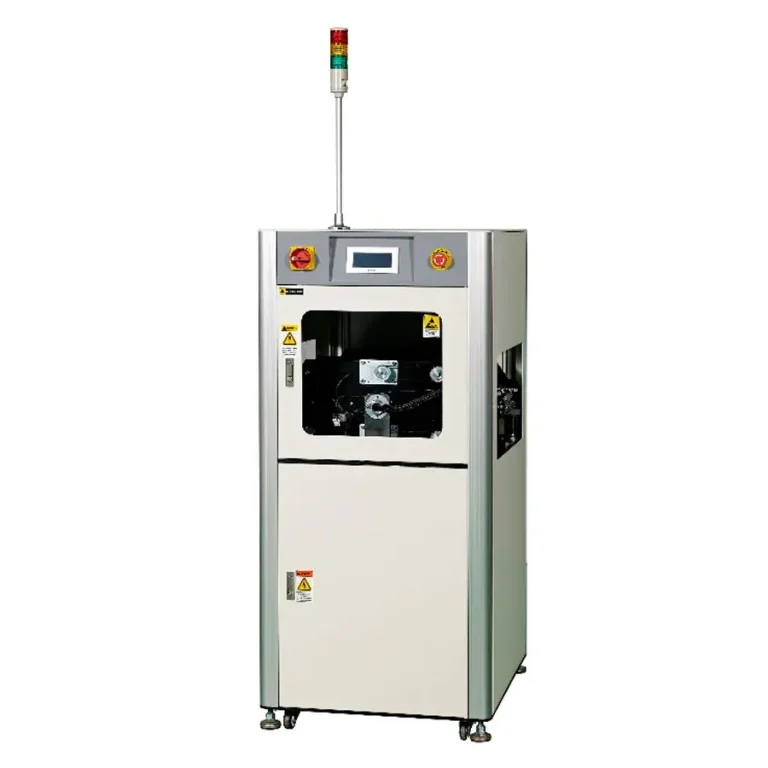

PCB INVERTER STATIONS
SIGNATURE FEATURES: Left to right process flow – front fixed rail (standard). Right to left process flow – front fixed…
Promation

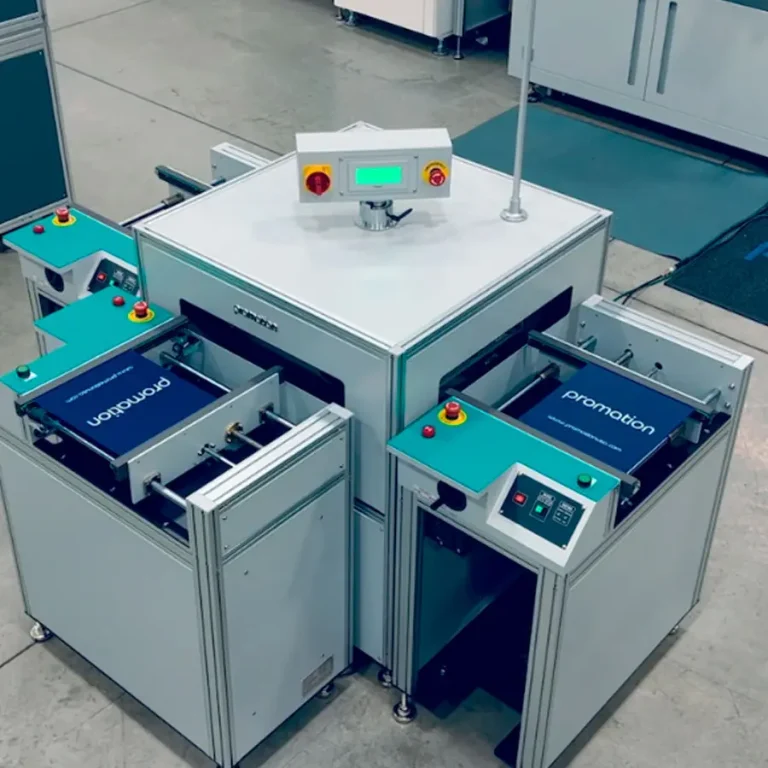

90° TURNING STATIONS
SIGNATURE FEATURES: Programmable Logic Controller. "Sorting" SMEMA for Post AOI and Junction configurations available (optional). Single drive configuration (shuttle and…
Promation

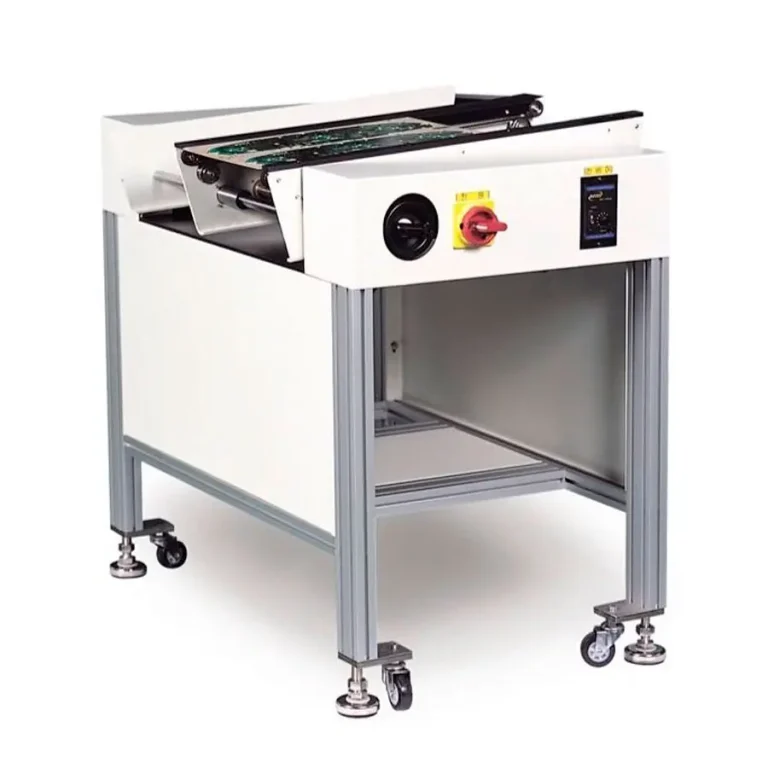

WAVE LOADING SYSTEM
SIGNATURE FEATURES: “Left to Right” process flow – front fixed rail (standard). "Right to Left" process flow (optional). ESD grounding…
Promation

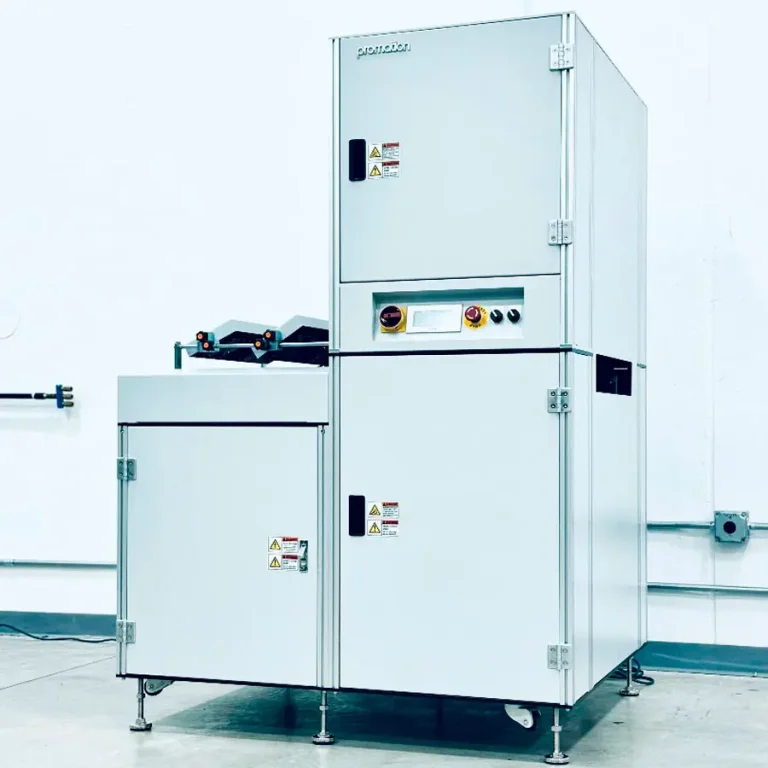

PCB BUFFERING SOLUTIONS
SIGNATURE FEATURES: PLC Controller (Panasonic) Left to Right Process Flow, Front Fixed Rail All belt type buffering solution – Magnetic…
Promation

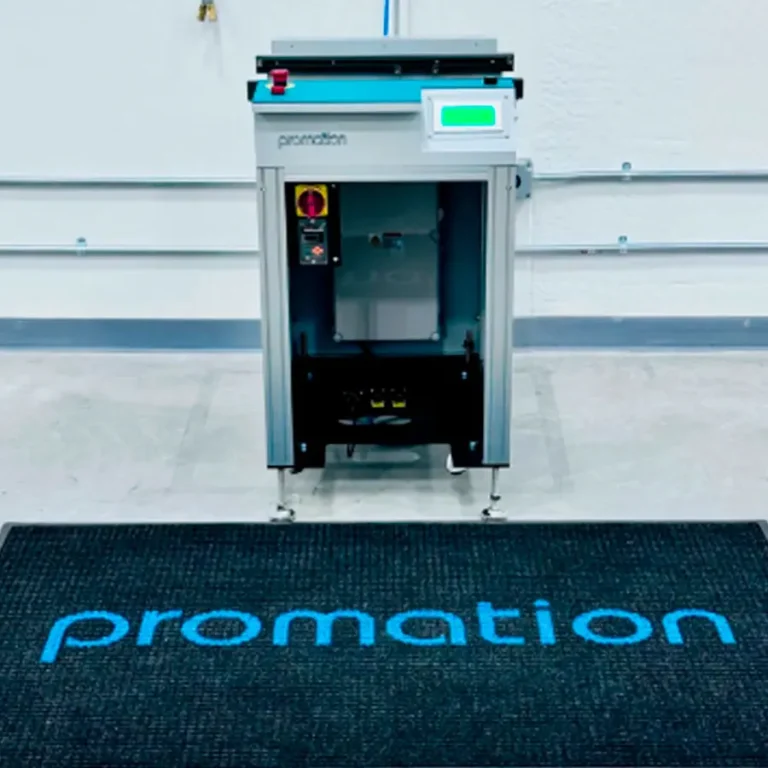

TRANSFER / INTERCONNECT CONVEYORS
SIGNATURE FEATURES: • Programmable Logic Controller. • Top cover option with see through window. • Single and multi-belt drive configurations…
Promation

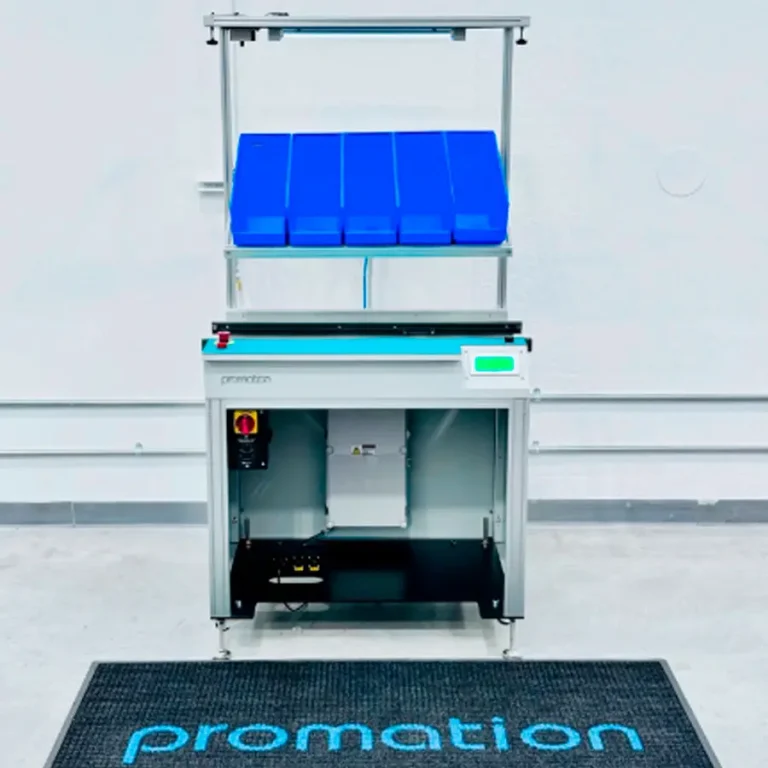

INSPECTION CONVEYORS
SIGNATURE FEATURES: • ESD grounding receptacle (Optional) and Audible alarm. • Overhead lighting with On / Off switch. • Roller…
Promation
MAGAZINE LINE UN – LOADER
SIGNATURE Features: PLC Controller (Panasonic) Left to Right Process Flow, Front Fixed Rail Adjustable pusher position (manual) Adjustable flow control…
Promation

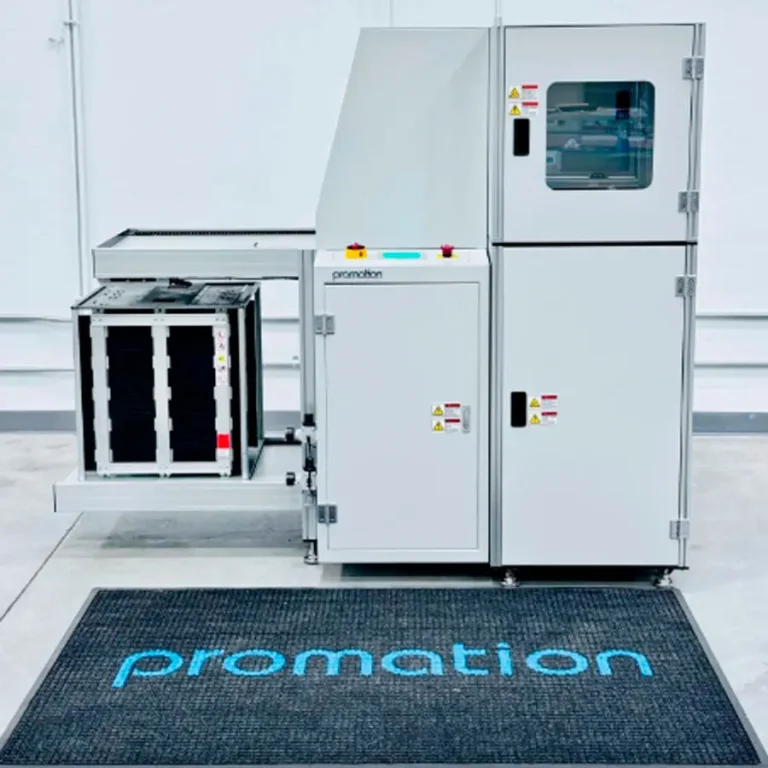

MAGAZINE LINE LOADING SOLUTIONS
SIGNATURE Features: PLC Controller (Panasonic) Left to Right Process Flow, Front Fixed Rail Adjustable pusher position (manual) Adjustable flow control…
Promation
BARE BOARD LOADING STATIONS – VACUUM TYPE
SIGNATURE FEATURES: Programmable Logic Controller. Single drive configuration (with rail separation). Transport speed (180mm/sec Fixed) – Variable speed optional. Dual…
Promation
BARE BOARD LOADING STATIONS – DESTACKER TYPE
SIGNATURE FEATURES: Programmable Logic Controller. Single drive conveyor (Load / Pass modes). Adjustable for PCB thickness. Transport speed (180mm/sec -…
Promation
PANDA ROBOTICS USA
What are the Advantages? Marks Directly to the PCB - The data imprinted upon the PCB or substrate is permanent…
