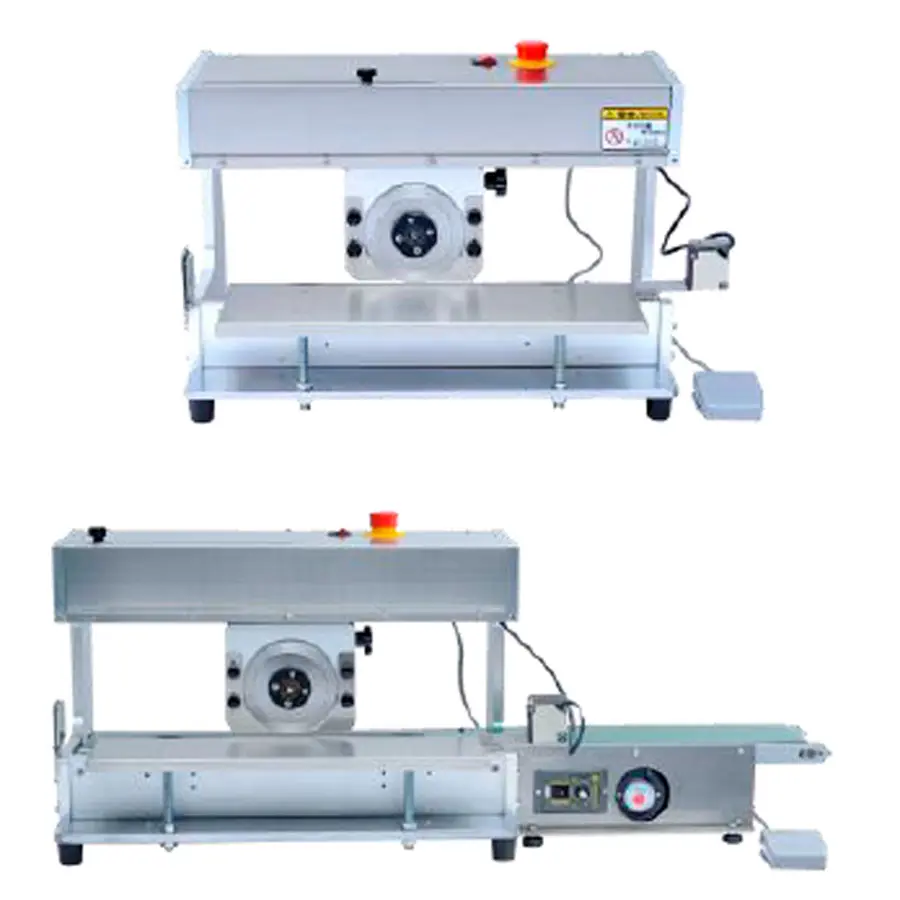

Moving Blade PCB Depaneling Machine

1.Controlling by microcomputer,high stability and accurate positioning. 2.Higher speed can improve cutting result,make the boards away from burr. 3.Blade height slight adjustment in 0 to 2mm,platform height adjustable in 0 to 50mm,to fit PCB of different thickness,and solve the problem of different V-slot depth. 4.Manually Set the position to stop automatically according to specific length of the PCB. 5.PCB width no restriction,max thickness amoung V-slot is 0.25 to 2.0mm. 6.Blades material is the imported high speed steel ,it can be sharpened again when in need. 7.Conveyor belt is optional , conveniently transfer finished PCB out. 8.Stop block can be used for different PCBs, to raise working efficiency.
