What does N1 do
Newly
A First-Article Inspection (FAI) is a formal method of providing a reported measurement for a given manufacturing process. The method consists of measuring the properties, values and geometry of an initial sample item against given specifications.

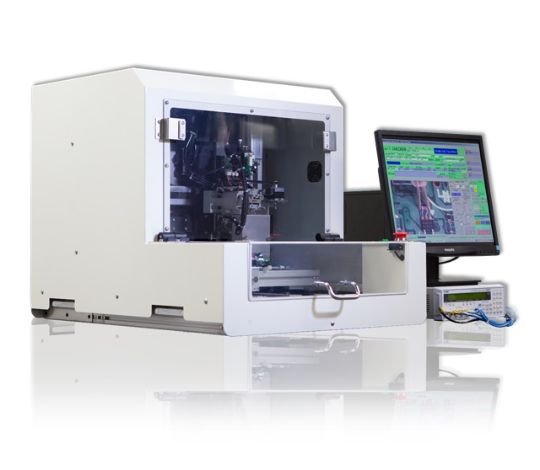

N1=checker offer two type of models, X series, (run on stick tape over the board), and Y series (Run reflow and stick tape) as an option
N1=checker
FAI
Equipment especifications
Medium

Specifications:
- Test Area: X: 330 mm (13.0") / Y: 250 mm (9.8")
- Max component Height: 0.54in
- Test Time: 1 sec. per component
- Max Step: 10,000 steps
Large

Specifications:
- Test Area: X: 510 mm (20.0") / Y: 380 mm (15.0")
- Max component Height: 0.54in
- Test Time: 1 sec. per component
- Max Step: 10,000 steps
X-Large

Specifications:
- Test Area: X: 530 mm (20.8") / Y: 460 mm (18.1")
- Max component Height: 0.54in
- Test Time: 1 sec. per component
- Max Step: 10,000 steps
XX-Large

Specifications:
- Test Area: X: 610 mm (24.0") / Y: 610 mm (24.0")
- Max component Height: 0.54in
- Test Time: 1 sec. per component
- Max Step: 10,000 steps
